CrankScan 200

Semi-automated CrankScan systems are designed for low-volume applications with experienced operators.

CrankScan 200

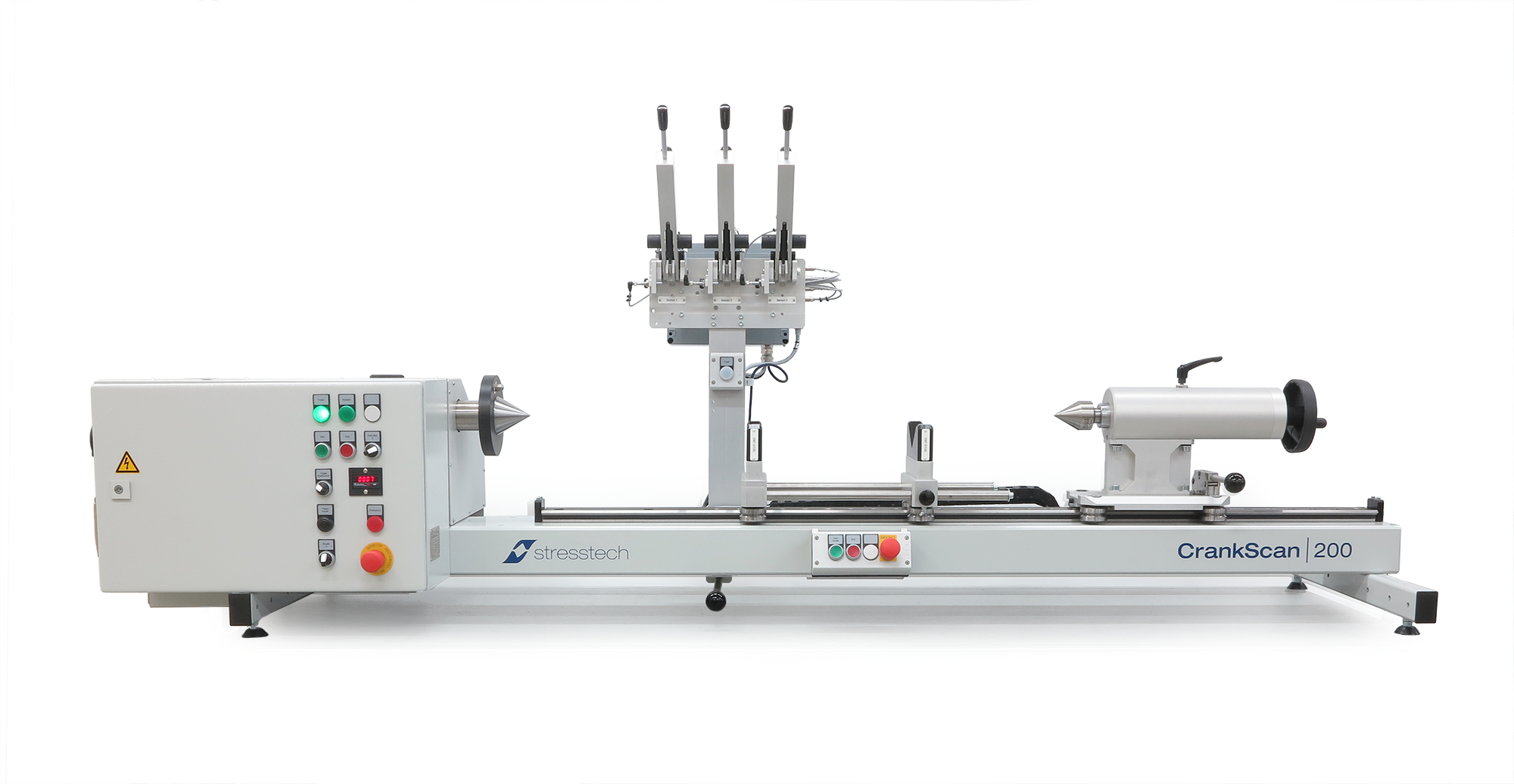

CrankScan 200 is a semi-automated grinding burn and heat treatment defect detection system heavy-duty crankshafts. It is designed for quality control needs of medium to large sized crankshafts.

  • User friendly turn key system for Barkhausen noise inspection method
  • CrankScan 200 sensor arm is self-aligned which minimizes measurement result variation between different operators
  • Can be placed next to production line for sample test and optimizing machining parameters or in testing laboratory for material study



Electric cabinet

Control panel with:

  • Light indicators for power, rotation and emergency state
  • Trigger mode switch with three triggering options
  • Trigger buzzer on/off switch
  • Rotation start and stop buttons
  • Rotation speed adjuster
  • Auto-stop switch: The automatic stop function will stop the rotation accordingly to the selected trigger after two trigger signals
  • Emergency stop push button

Light indicator for trigger

Control unit with:

  • Rotation start and stop buttons
  • Emergency stop push button

Rotation unit

Drive center for rotation and sample indexing

Tailstock with fine adjustment wheel

Sensor carrier with

  • Room for 3 self-aligning sensor arms
  • Automated Barkhausennoise sensor switch unit for 4 sensors

Axle support

Analyzers
Sensors
  • Area to be measured defines size and shape of the Barkhausen noise sensor. One system can be equipped with several different kind of cam sensors. Read more about our sensors: Barkhausen noise sensors
Software
