It is time for a new inspection experience

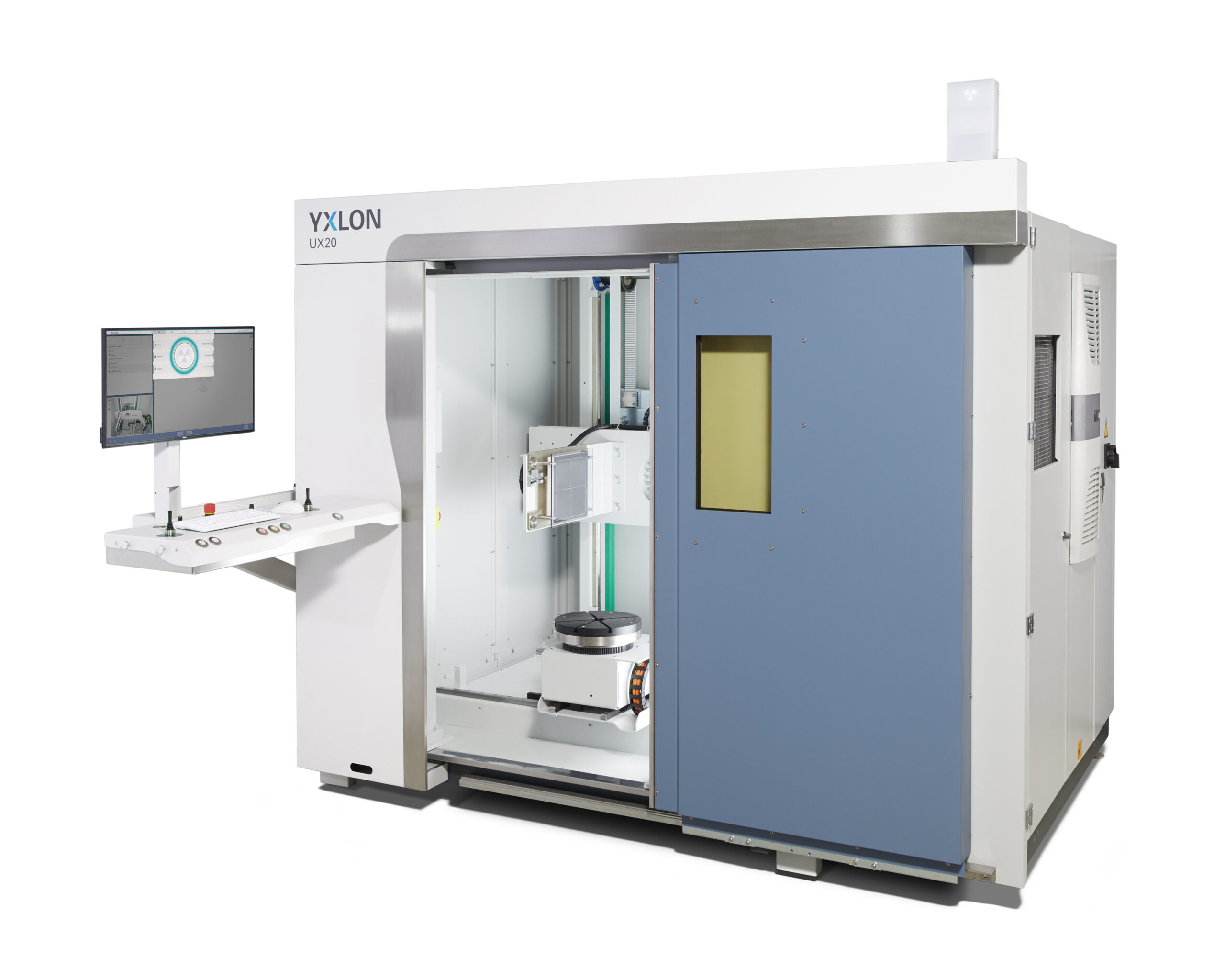

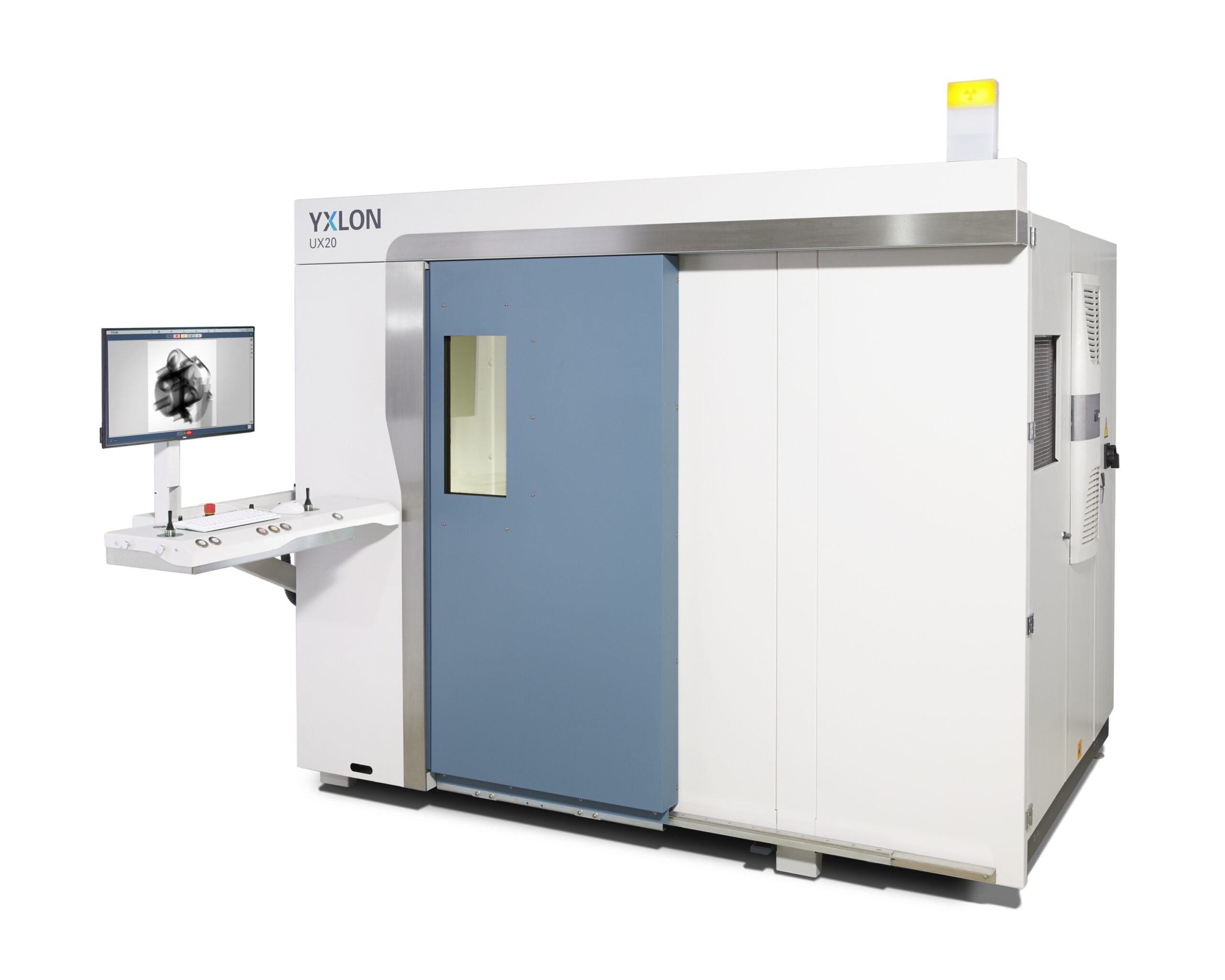

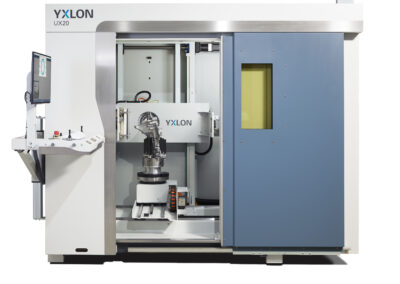

The YXLON UX20 system for x-ray and CT inspections of medium to large cast parts makes your inspection tasks as easy as never before. Its exceptional inspection envelope allows for 2D and 3D results in record time.

  • Easy operation with Yxlon’s award winning user interface Geminy
  • Fast results with large inspection envelope in 2D and 3D
  • Modern industrial design with a compact footprint

System Capabilities

We designed the UX20 system from the ground up for fast and easy x-ray inspection of your parts. The award-winning user interface Geminy enables an easy inspection, both for your 2D and 3D inspection needs. Our efficient workflows with automation, wizards and presets guide the user.

Different user roles help to streamline your tasks: the expert can tweak all parameters and set up presets while less experienced users can simply execute predefined tasks. That way, you can be sure that the system is ready for your inspection needs at any time.

One glance at the health monitor is enough to grasp the system’s condition and performance. In case anything is abnormal, the solution is usually just a click away.

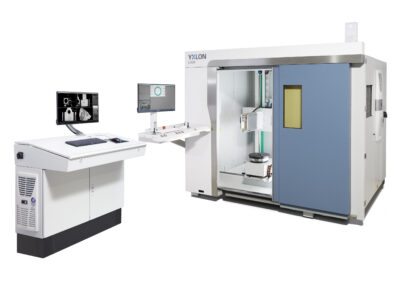

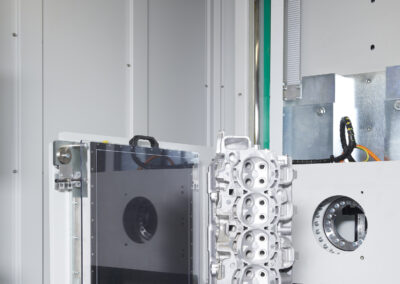

With the heritage of CT inspection systems like the YXLON FF35 CT, you can count on a strong suite of computed tomography features. With ScanExtend, the wizards guide you to set up various scan-field extensions so that you can scan even the largest parts in the system.

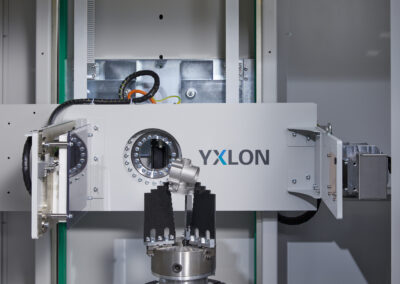

The optimized image chain with x-ray tube, detector and image processing software provide benchmark image quality, the basis for best inspection results.

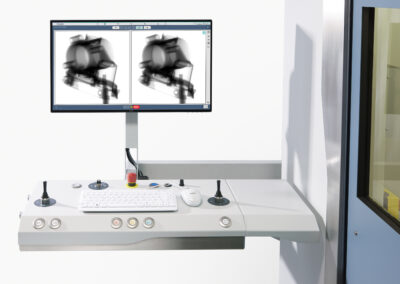

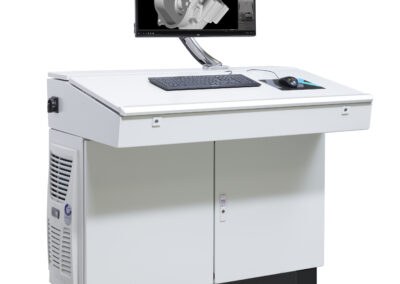

Easy inspection is the sum of many components. The operator desk, for example, has only the items that you really need. Moreover, it’s adjustable in height for ergonomic standing or sitting positions according to the user’s individual needs.

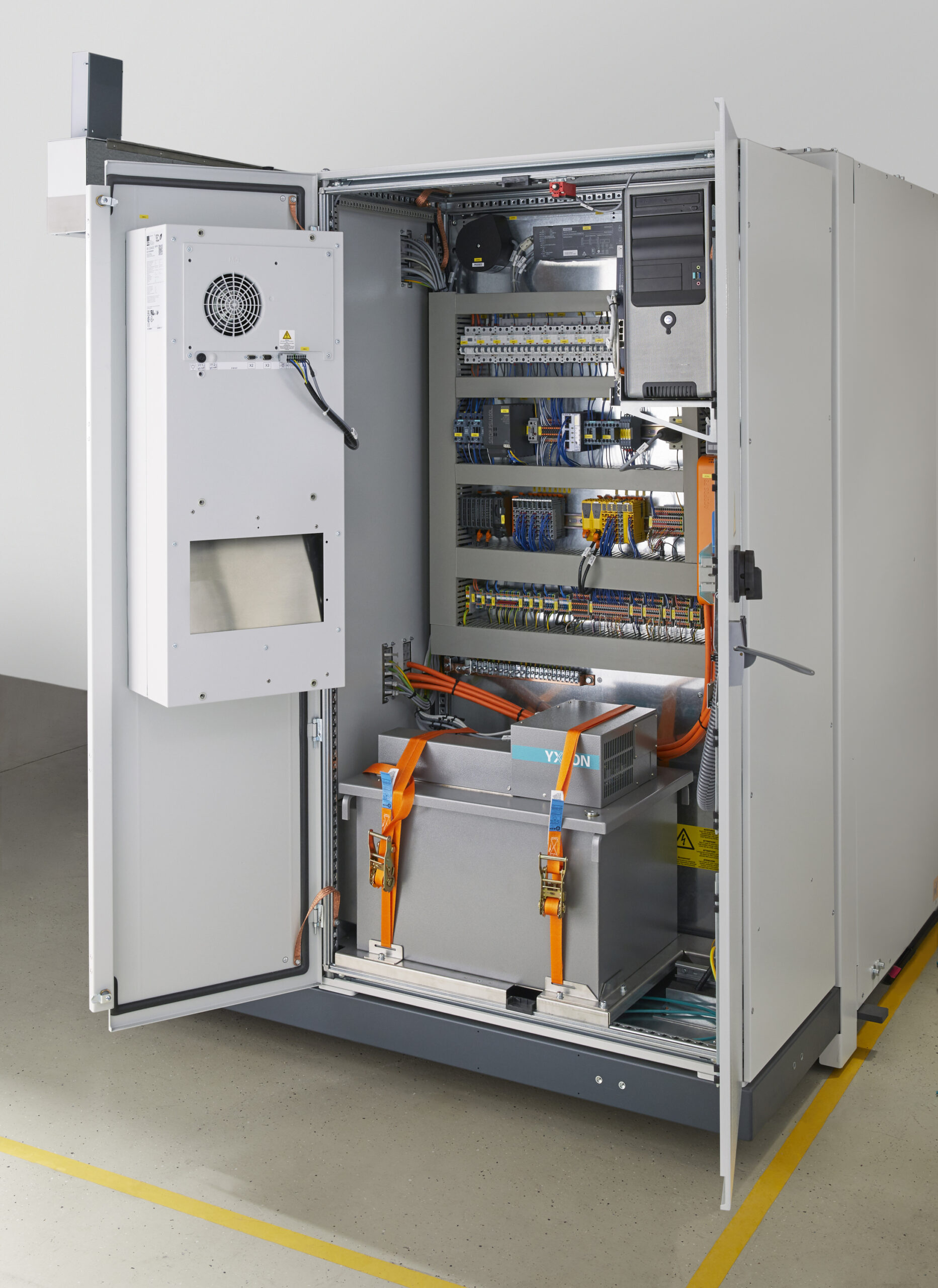

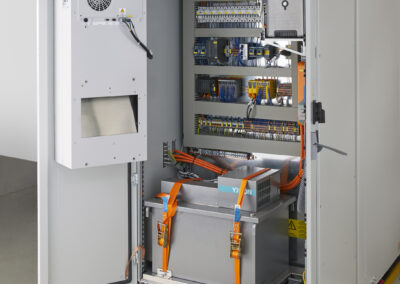

Due to its small footprint and low height, you can even place the system in narrow corners. With access from two sides, maintenance is hassle-free. Even the cooler and generator are safely placed internally to improve uptime.



Technical Data

AttributeY.Panel 2323 HBY.Panel 4343 DXi
Maximum Sample Weight100 [kg]100 [kg]
System Dimensions2250 x 1770 x 2350 [mm]2250 x 1770 x 2350 [mm]
X-ray Tube160-225 [kV]160-225 [kV]
Detector Active Area1280 x 1280 [px]3072 x 3072 [px]
Pixel Pitch179  [µm]139  [µm]
Bit Depth16 bit16 bit
Oblique Viewing+/-55 (45° in central beam)+/-55 (45° in central beam)
CT ModesQuickScan, QualityScan, Cone beam CT,  virtual axis, FoV extensionQuickScan, QualityScan, Cone beam CT,  virtual axis, FoV extension
Inspection Envelope DR (2D)710 x 1090  [mm]800 x 1100 [mm]
Inspection Envelope CT (3D)190 x 165  [mm]340 x 280 [mm]
Inspection Envelope CT (3D) with ScanExtend315 x 1085 [mm]540 x 1100 [mm]
