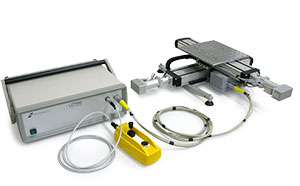

Xstress System X-Y

This option for Xstress G2, G2R and G3 X-ray diffractometers allows for automated mapping of a surface using the project manager integrated to XTronic software.

X-Y System dimensions

• Depth 690 mm
• Width 690 mm
• Height 168 mm
• Weight 27 kg

Logic controller dimensions

• Depth 480 mm
• Width 360 mm
• Height 160 mm
• Weight 6 kg

Power demands

• Voltage 100–240 V AC, 1 phase
• Frequency 50–60 Hz
• Power 600 VA

X-Y System accuracy

• Absolute accuracy ±0.1 mm
