Xstress Rotation System

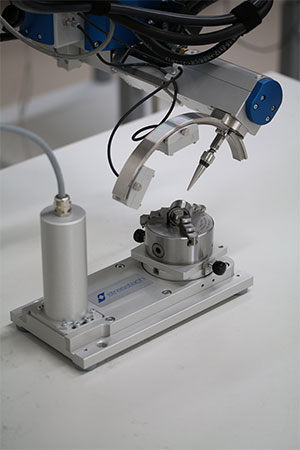

Rotation unit

Xstress rotation unit can be added to Xstress G3 to make measurements automatically in different Phi angles.

Dimensions

  • Depth 309 mm
  • Width 230 mm
  • Height 91 mm
  • Weight 10.5 kg

Power demands

  • Voltage 24 V DC
  • Power 5 W

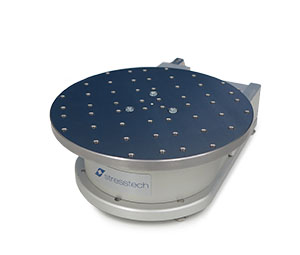

Rotation table

Xstress rotation table can be added to any Xstress system. It offers continuous rotation allowing for further randomizing of the sampling volume when performing retained austenite measurements.

Dimensions

  • Depth 120 mm
  • Width 240 mm
  • Height 148 mm
  • Weight 3 kg

Power demands

  • Voltage 24 V DC
  • Power 15 W
