X750

X750

Designed for applications where high mobility is needed, the X750 is lightweight, rugged and provides high resolution images and advanced imaging functions that allow workers to fulfill their tasks in even the most challenging environments.

Features:

  • Flexibility
  • Connectivity
  • Innovation
  • Productivity
  • Durability
  • True sight

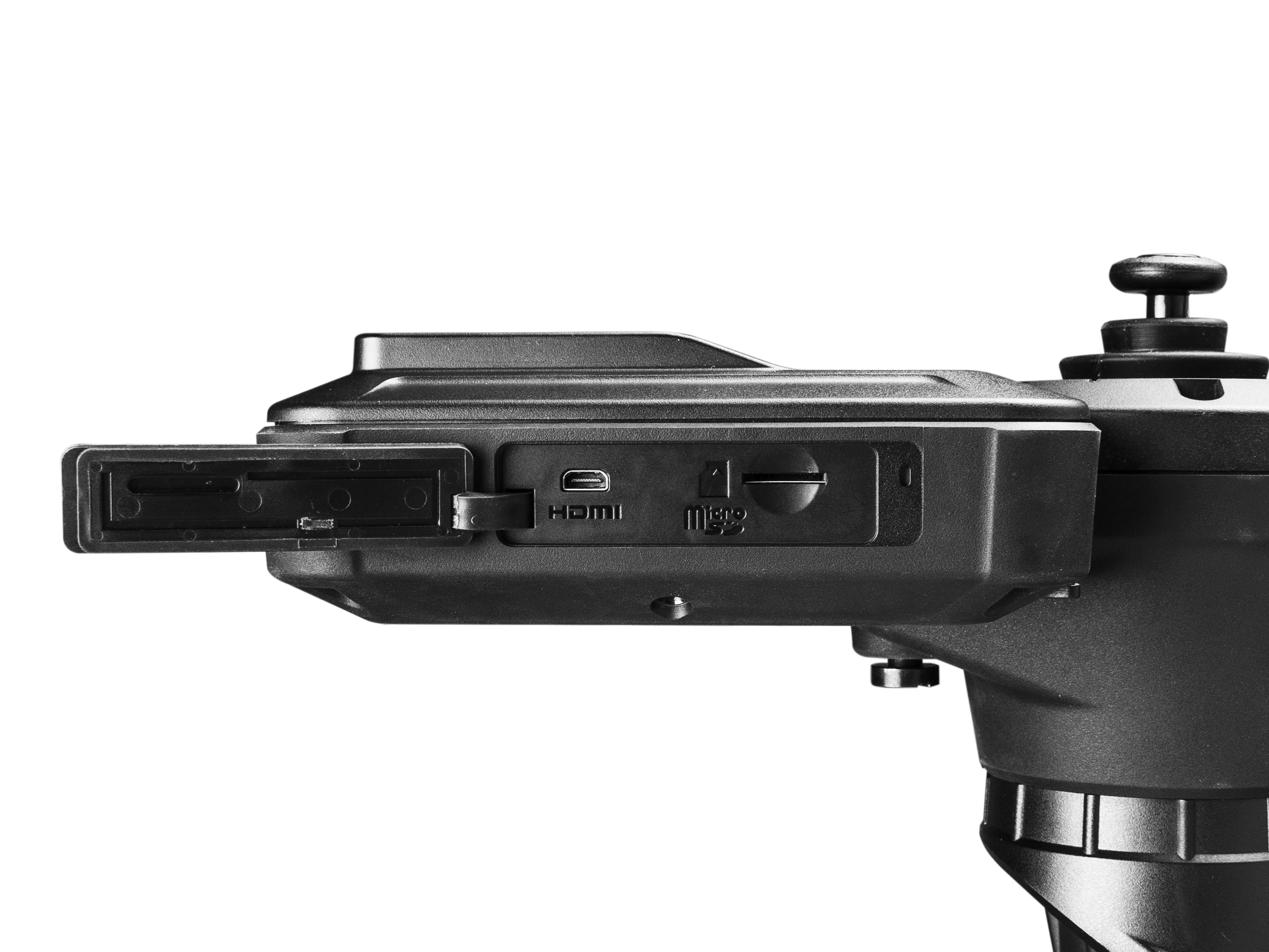

X750 Connections1

Advantages:

  • Lightweight
  • Ergonomic
  • Controllable via Apps (both Android and Iphone
  • Advanced file management
  • Additional secondary 2560 x 1440 pixel camera
  • 5″ Full touch screen
  • Possibility to set manual exposure
  • Advanced FOV (Field of view)
  • Advanced DOF (Depth of field)

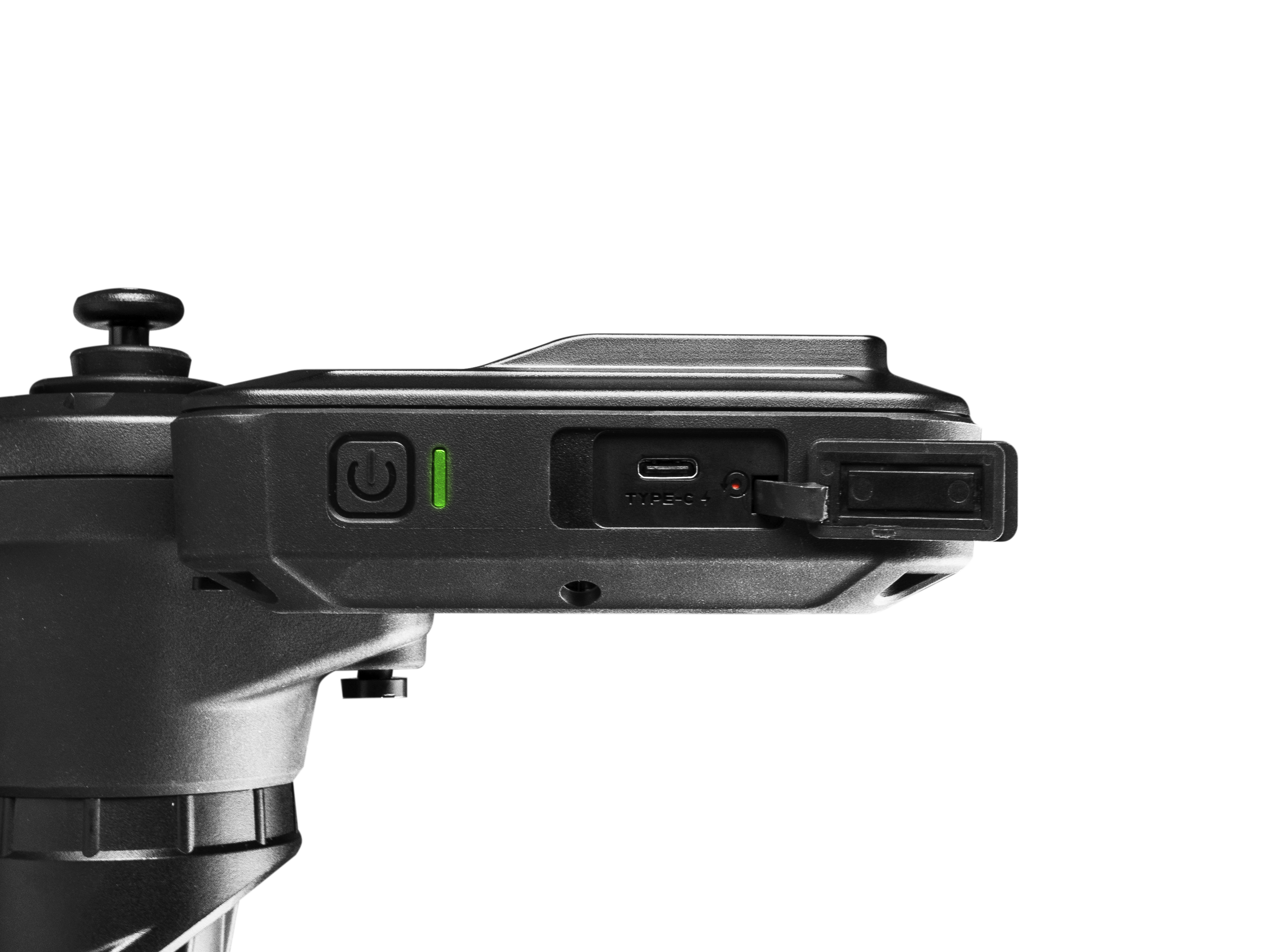

X750 Connections2

Specification

Base Unit
Dimensions
  • L=327,5 mm  W= 152,8 mm  H=201,3 mm
Weight
  • 1230g (w/2m tungsten tube)
Water resistance
  • IP 54
Display
  • 5 inches / detachable touchscreen / 800x480 resolution
Function buttons
  • Power, Reset (pin button)
I/O Port
  • Micro-SD memory card slot
  • USB Type-C (power in, data out)
  • Mini-HDMI (AV output)
Tip Temperature on screen
  • 60°C/80°C/100°C – 3 Level Warning
Wi-Fi
  • 802.11 b/g
App
  • VideoscopeNow
LED Indicators
  • Green – working / fully recharged
  • Red – low power / recharged
Microphone
  • Built – in (on/off switch in settings menu)
Compatibility
  • 60 HD Tungsten 2M/3M/7M
  • 39 HD Tungsten 1,5M/3M
  • Screen Detachable Mode
External Light
  • LED
External Camera
  • 2560x1440 JPG
GNSS
  • GPS, GLONASS Dual Mode



Joystick
Articulation
  • Full Way
Function Buttons
  • 4 Buttons: Brightness +/Brightness – /Snapshot/Record
Articulation Control
  • Joystick/Lock – Stop&Go
Water Resistance
  • IP54
Battery (One Piece)
  • 4900 mAh replaceable Li – ion Battery
Working Time
  • 3 Hours of Operation (with 2m/3m)
Battery/Charger Set
Dimensions
  • 117,5 x 76,8 x 69,7mm
Weight
  • Full Set (Batteries w/Charger Set): 393g Batery 113g:
  • Charger Set: 165g
Charging Time
  • 6 Hours for 2 Batteries / 3 Hours for 1 Battery
LED Indicator
  • Red: Charging/Green: Fully Charged
