TubePro™ is the reference in tubing inspection reporting. Based on ISS’ 30+ years of experience in developing software applications for the petrochemical and power generation industries, TubePro includes many tools that will allow the inspection companies to report faster and the asset owner to get the most complete results.
TubePro 4 report template import
It’s finally here! With TubePro 5.4, you can now import your TubePro 4 TMI legacy report directly. Get up to speed on the latest reporting features in no time, and without starting your report from scratch.
- Excel report editor added, for more flexibility;
- Drawings get transferred;
- Document properties are kept;
- 3D model included in your report project.
3D modeling available on PDF report

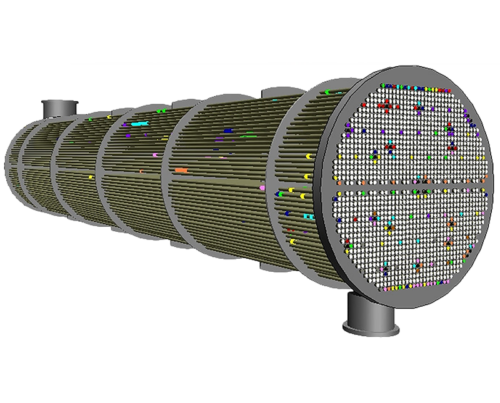

Stepping up once again the standard for inspection reporting, you can now insert your 3D model in your PDF report. Simple to use, it increases the confidence of the asset owner in the results and demonstrates higher attention to details. With this new feature, the final customer can rotate and zoom the model to visualize the defect locations directly in the PDF, thus simplifying the assessment of equipment integrity.
Working in close relationship with the experienced TubePro team, we have created a link to instantly update your tube list into Magnifi. Using the Photo & Drawing Detection Tool, the user can quickly create the tube sheet for the inspection, then directly send it to Magnifi to perform the inspection. This new feature simplifies the 2D tube sheet creation and reduces the user risk of error.
The interaction link with Magnifi 4.5 also offers real-time 2D/3D report synchronization. No more export/import back and forth to get your data from the acquisition software to TubePro. When Magnifi and TubePro are working side-by-side, you always get an instant report status.
New plugged tube ratio diagram

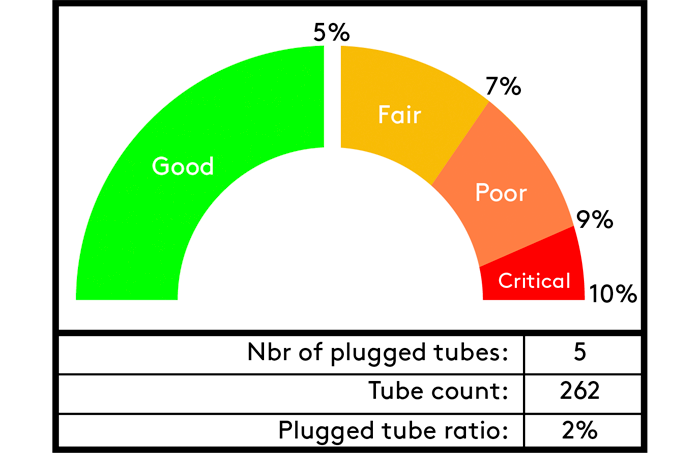

With the new plugged tube ratio diagram, it will drastically help the asset owner to get a better estimation on the asset. This feature is calculated from the plugged tubes number/total tube count, with 10% set as the critical limit.
At a glance, the new Plugged Tube Ratio diagram allows the asset owner to assess the general health of his tube bundle. For an inspection company, the graph is automatically generated at the tube list creation and counts all the plugged tubes from the report table.
Support multiple data sets and reports

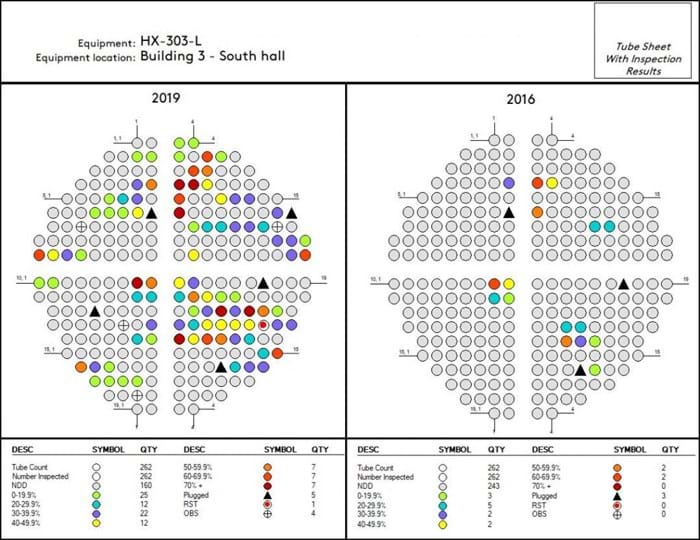

To increase the added value of your report and the asset owner’s confidence level in the results, 2 data sets can be added and analyzed in the same report.
This feature enables the user to instantly visualize the current condition of the bundle and compare it to previously recorded data. The client is therefore in the best disposition to identify trends and take immediate actions to protect his asset.
Moreover, this feature can also be used to analyze a current inspection performed with 2 different techniques on the same bundle. For example, if the bundle is tested with RFT, and if some tubes are rescanned with IRIS, both results can be shown in a comparison view.
2D/3D photo and drawing detection tools

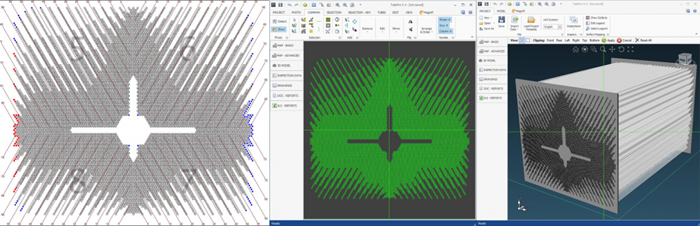

To help the inspection company be more productive, we have added an assisted photodetection tool. For pictures, you can import the file and then select the region where you want TubePro to detect the tubes. In an instant, all the tubes are displayed in your map and you are ready to create the numbering.
For PDF, DXF, and DWG, it is even easier with a 100% detection rate. This tool is especially handy for large bundles with complex shapes, even with over 10,000 tubes.
