The Multi2000 Pocket is a small and lightweight equipment working in addition to a laptop. Highly portable equipment, Multi2000 Pocket is available in 16:64 configuration. The rugged box is ideal for industrial non destructive testing for example.

Specifications

ACQUISITION

Acquisition trigger on event (threshold, echo, etc.)

Acquisition on user-specified trigger (e.g., time, coder) choice of data (e.g., RF, peaks, elementary A-scan)

Real-time imaging

User-specified configuration public file format for parameters (XML) and data (binary)

Max. data flow 30 MB/s

PHASED ARRAY

Custom focusing

Electronic scanning

Sectorial scanning, DDF

Inspection modes

  • Pulse-echo and transmit-receive modes fast multiplexing
Corrected images (e.g., sectorial B-scan, C-scan)

PULSERS

Adjustable voltage
  • 10 to 80 V with 1 V step, negative rectangular pulse
Adjustable width
  • 30 to 625 ns, step of 2.5 ns, rise time < 10 ns (80 V, 50 Ω), max.
PRF
  • 30 kHz

RECEIVERS

Bandwidth
  • 0.8 – 16 MHz, adjustable gain on each channel from 0 to 80 dB adjustable analog DAC on 50 dB (max. 40 dB/µs) synchronized on events cross-talk between two channels > 50 dB
Max. input signal amplitude
  • 0.8 Vpp

DIGITIZER

Max. sampling frequency
  • 100 MHz (adjustable from 100 to 6.6 MHz)
Range
  • 10 bits
Input impedance
  • 50 Ω
Global delay
  • 0 up to 1.6 ms, step of 10 ns
Delay-laws at transmission/reception
  • 0 to 20 µs, step of 2.5 ns
Digitizing depth
  • Up to 50 000 samples (8000 samples max. per elementary channel)

HARDWARE CONFIGURATION

Standard box
  • Multiplexed architecture: 16:64*

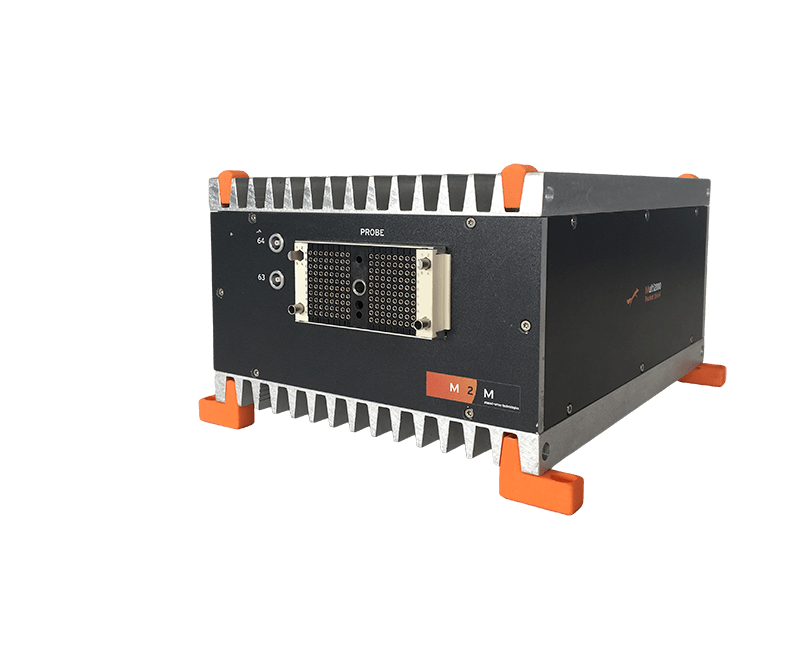

Rugged box
  • Multiple device capability
  • IP 50–Fanless
  • Operating temperature : -10–50°C (14–122°F)

DIMENSIONS

Standard box (L × W × H)
  • 212 × 145 × 70 mm (8.35 × 5.71 × 2.76 in)
  • Weight: ~1,3 kg (2.87 lb)—battery included)
Rugged box (L × W × H)
  • 200 × 150 × 100 mm (7.87 × 5.91 × 3.94 in)
  • Weight: ~2,6 kg (5.73 lb)

I-O

1 × hypertronix connectors

3 × encoders input

1 × external trigger

1 × USB2

2 × LEMO® connectors (type 00)

External power supply input

NOTES

*

  • A 8:32 version, co-developed with Airbus Group, also exists. (Performance may be reduced depending on the settings.)
