LS-50

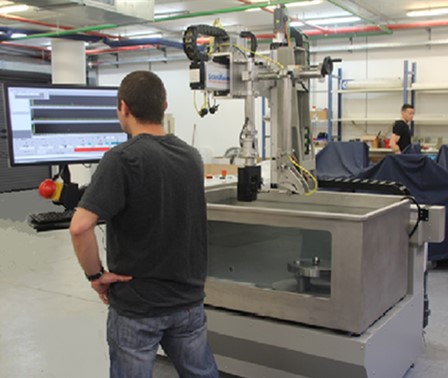

ScanMaster ultrasonic immersion systems are designed for high throughput, multi shift operation in an industrial or lab environment. These fully integrated systems provide various scanning configurations and incorporate conventional and phased arrays technologies to support diverse applications, such as inspection of disks, bars, shafts, billets and plates.
All of ScanMaster immersion systems are built from high accuracy scanning frames allowing for scanning of complex parts and include a multi-channel ultrasonic instrument with exceptional performance. The systems are approved by all major manufacturers for C-scan inspection of jet engine forged discs.
Together with a comprehensive set of software modules these flexible series of systems provide the customer with the best price performance solutions.
| Product | Motion Envelope Linear Axes | Manipulator | Max. Part Diameter mm (inch) | TurntableCapacity kg (lbs) | Water Height mm (inch) | ||
| X mm (inch) | Y mm (inch) | Z mm (inch) | A B deg deg | ||||
| LS-50 Series | |||||||
| LS-50 | 750 (30) | 400 (16) | 450 (18) | ±38 ±112 | 400 (16) | 80 (176) | 300 (12) |
| LS-500 Series | |||||||
| LS-500-1000 | 1,000 (40) | 600 (24) | 700 (28) | ±38 ±112 | 600 (24) | 200 (440) | 430 (17) |
| LS-200 Series | |||||||
| LS-200s | 1,200 (48) | 600 (24) | 600 (24) | ±38 ±112 | 600 (24) | 200 (400) | 450 (18) |
| LS-200L-1200 | 1770 (69) | 920 (36) | 1,000 (40) | ±38 ±112 | 1,200 (48) | 1,000 (2,200) | 820 (32) |
| LS-200LP-1200 | 1,400 (55) | 920 (36) | 1,000 (40) | ±38 ±112 | 1,200 (48) | 1,000 (2,200) | 780 (30) |
| LS-200L-1500 | 1,800 (70) | 1,100 (43) | 1,000 (40) | ±38 ±112 | 1,500 (59) | 1,000 (2,200) | 780 (30) |
| LS-200LP-1500 | 1,680 (66) | 1,100 (43) | 1,000 (40) | ±38 ±112 | 1,500 (59) | 1,000 (2,200) | 740 (29) |
| DS-200 Series | |||||||
| DS-200i-1500 | 1700 (66) | 1,500 (59) | 1,000 (40) | ±38 ±112 | 1500 (59) | 2,000 (4,400) | 1,000 (40) |
| DS-200i-1800 | 1,700 (66) | 1,500 (59) | 1,000 (40) | ±38 ±112 | 1,800 (70) | 2,000 (4,400) | 1,000 (40) |
