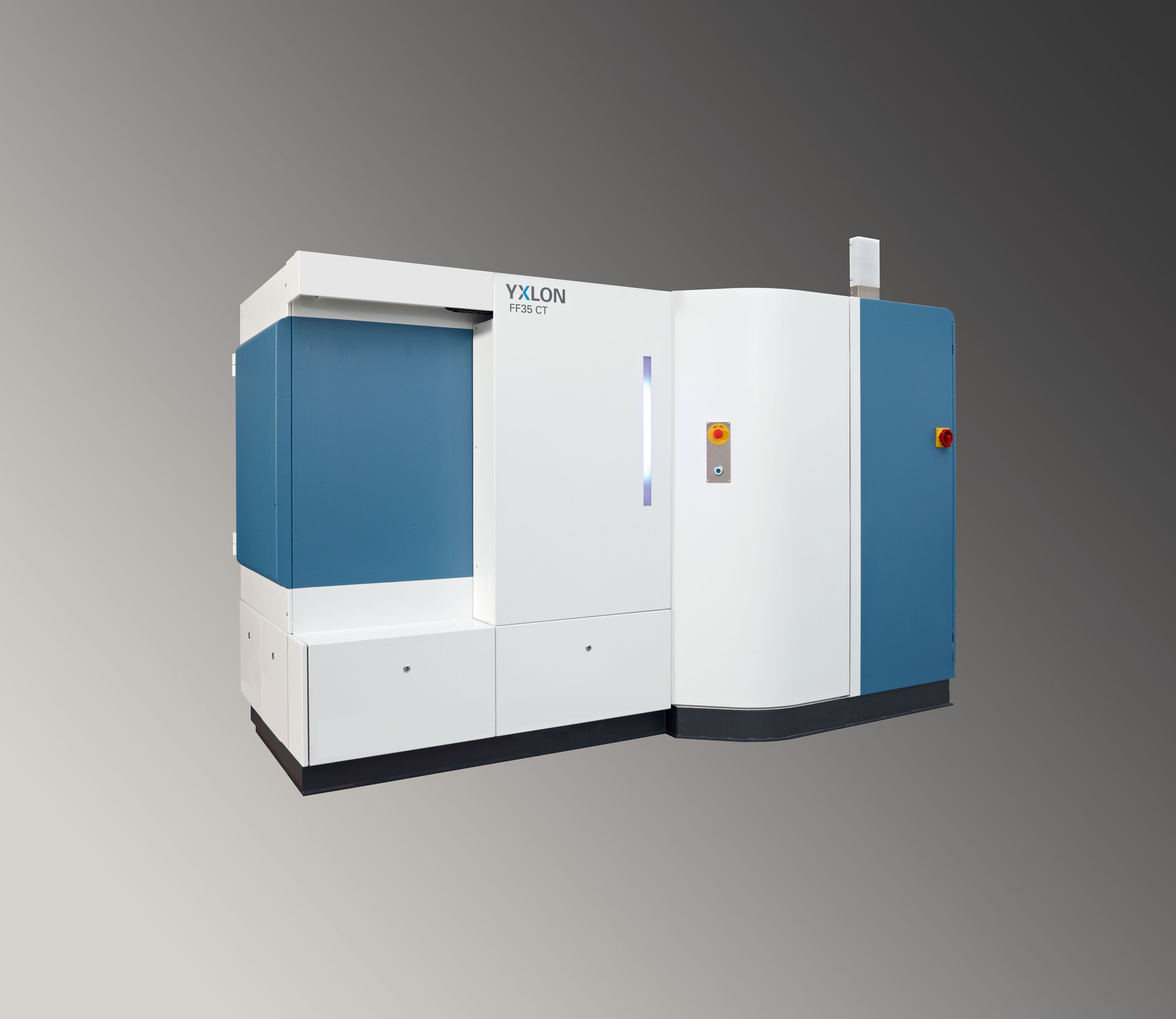

YXLON FF35 CT

High Resolution Industrial CT System for Small/Medium Size Parts Inspection

The YXLON FF35 CT computed tomography system is designed to achieve extremely precise inspection results for a wide range of applications. Available in a single or dual tube configuration, it is perfect for very small to medium size parts inspection in the automotive, electronics, aviation, and material science industries.

  • single or dual tube configuration for the highest versatility
  • 2D detail visibility of up to 150 nm with new water-cooled 190 kV transmission tube
  • temperature stability with granite based manipulation
  • innovative and intuitive touchscreen operation for quick inspection
  • application flexibility using trajectories such as helical CT scan, horizontal field of view extension, virtual rotating axis, and standard Quick/QualityScan
  • precise metrology MPESD = 8 µm + L/75, measured as a deviation of sphere distance referring to VDI 2630-1.3

The FF35 CT is a compact, high-resolution computed tomography system ideally suited for inspection of your small to medium sized items such as:

  • electronic components like SMD
  • semiconductor packaging
  • probes of new materials (e. g. metal, plastics, CFRP)
  • microsystems, MEMS, MOEMS
  • medical devices like hollow needle
  • small metal parts i.e. injection molds
  • electronic devices
  • small castings

A key advantage of the powerful FF35 CT is the optional dual-tube-configuration (nano-focus transmission tube and high power micro focus tube), which makes the FF35 CT extremely versatile. Each tube can be adjusted independently at a touch of a button.

Intuitive system control is accomplished via two touchscreens displaying easy to understand graphics. Intelligent functionality supports the user: As an example, ‘IntelliGuard’ avoids collision with X-ray tube and detector by automatically determining the outer-shape of the inspection item during a 360° rotation.

CT trajectories such as ‘HeliExtend’ (Helical CT scan and reconstruction method) provide consistently good image quality from top to bottom, and capture elongated specimens with a high magnification scan.

The ability to select your own center of scan rotation using ‘virtual axis rotation’ (FlexCenter) offers considerable comfort and saves time. The inspected item need not be repositioned if regions of interest fall outside the physical center of rotation of interest.

A system health monitor gives you information on various parameters. Results are consolidated and displayed in a ‘traffic light’ representation. Additionally, you can access this health-state of the system and the progress of the CT (and reconstruction) from your office through our remote monitoring software.

Sample Diameter300 [mm] (11.8″)
Sample Height500 [mm] (19.7″)
Maximum Sample Weight30 [kg]
System Dimension2990 x 1550 x 2220 [mm]
X-ray TubeFeinFocus® 190 kV nano-focus and / or FeinFocus® 225 kV micro-focus
CT ModesQuickScan®, QualityScan, Cone beam CT, Helical CT, virtual axis, FoV extension, Volume Crop
Manipulationgranite based, active air damping, 6 to 8 axis, wide FDD range
