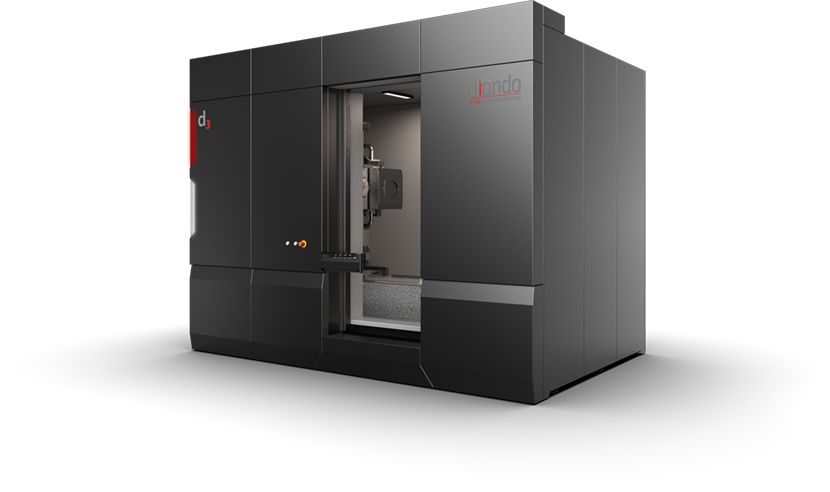

Diondo D3
Ultimate flexibility in a compact footprint
The diondo d3 provides a market leading flexibility and versatility to footprint ratio. The selection of X-ray sources in combination with up to 8 axis manipulation including the Infinitely variable Source Detector Distance lead to unprecedented range of options.
Users benefit from the latest technologies and access to the most innovative X-ray sources that not only combine high resolution and high energies in one CT system but also enable them to do so at the same time.
Highlights
- High energy High resolution High versatility
Extensive range of applications from microCT to high-energy CT due to dual tube configuration
- Coordinate Measuring Technology
Reproducible 3D measurement technology for highest demands in accordance with VDI/VDE 2630-1.3
- Outstanding flexibility
Seamless switches between radioscopy, micro CT, and high-power CT provide outstanding flexibility and the creation of individual inspection processes.
- Infinitely variable Source Detector Distance
combined with progressive 3K Paneltechnology for maximum resolution and scan speeds
- Multi-Axis Granit Manipulator
Maximum versatility through up to 8 manipulation axes on a temperature stable and high precision granite base.
- Large inspection envelope
by diverse field-of-view extensions, helical and dual-helical CT techniques
Micro Focus Tube | 190 / 225 / 240 / 300 / 320 [kV] | |
Mini Focus Tube | 450 [kV] | |
Meso Focus Tube | 450 [kV] | |
3 K Detector | 3000 x 3000 px, 139 [µm] | |
4 K Detector | 4200 x 4200 px, 100 [µm] | |
Focus-Detector-Distance, Micro Focus Tube | 400 – 1250 [mm] | |
Focus-Detector-Distance, Mini/Meso Focus Tube | 650 – 1500 [mm] | |
Sample Size, maximal | Ø 600 x H 870 [mm] | |
Scan Volume, maximal | Ø 600 x 900 [mm] | |
Scan Volume, maximal | Ø 650 x 1500 [mm] | |
Sample Weight | 100 [kg] | |

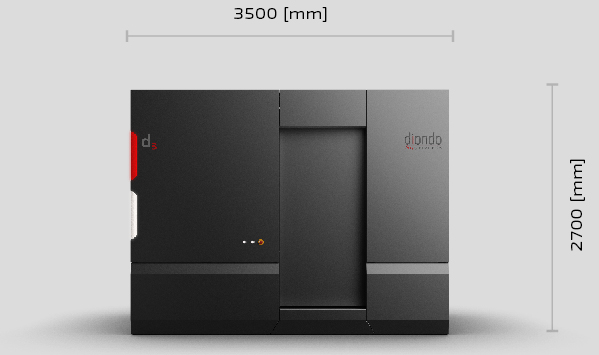

System Dimensions | L 3500 x B 2300 x H 2700 [mm] | |
System Weight | 24 [t] | |
diControl Features | DR-Function, Helix CT, Batch Mode, Offset CT, Daily Check, Health Monitor, Limited Angle CT, Metrology 5 µm + L /100, VDI/VDE 2630-1.3 | |
Manipulation | granite based, 7 / 8 axes | |
