Standard ECA surface probes benefit from various accessories.

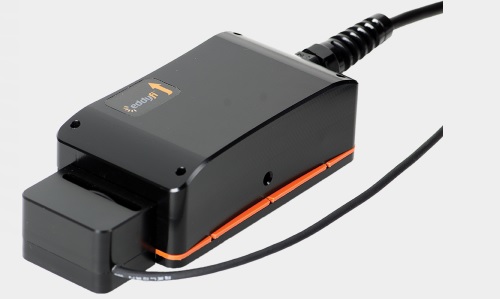

Standard ECA Probe Encoder

Eddyfi’s standard ECA surface probes can be equipped with a high-precision, high-resolution (25.46 counts/mm or 646.76 counts/in) encoder with an 18-pin connector for the Ectane® 2 and a 3 m (9.8 ft) cable. The encoder is compatible with all the standard surface probes. The click-on design of the encoder makes it extremely simple to install without the help of tools.

Benefit
  • Click-on design compatible with all Eddyfi standard surface ECA probes
Features
  • 25.46 counts/mm (646.76 counts/in) resolution
  • 3 m (9.8 ft) cable
  • Rugged aluminum casing
  • Waterproof design
  • Easy to clean
  • User-replaceable wheel


Calibration Standards

Calibration Plates

These reference plates are used to calibrate your probe for a given application. For details about the calibration standards, refer to our catalog or write to us.

  • Standards adapted to your standard ECA probe (penetration, coverage, defect sizes)
  • Standards for corrosion, welds, and other applications
Features
  • Available in aluminum, stainless steel, and carbon steel
  • Thicknesses varying between 3.18 mm and 6.35 mm, depending on model
  • EDM notches for crack-like indications
  • Flat-bottom holes (FBH) for volumetric indications
  • Custom indications available upon request
