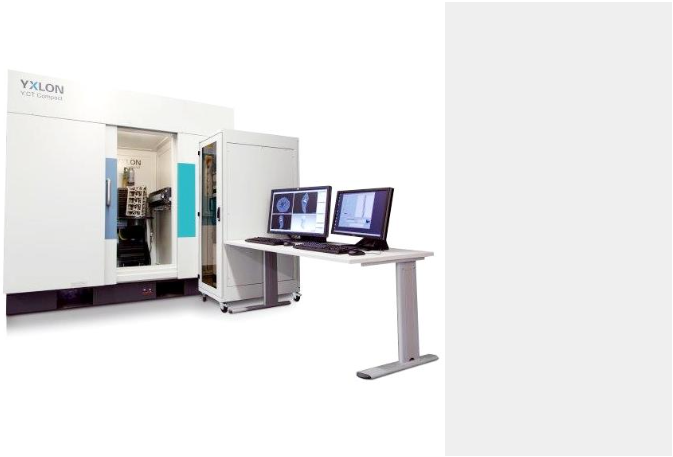

YXLON CT Compact



Compact Industrial CT System for Medium/Large Parts Inspection

“Discover the difference in efficiency” – the YXLON CT Compact is a reliable, highly efficient fan-beam CT inspection system for acquiring high-resolution 3D images for your medium to large casting parts.

  • Solid workhorse for efficient entry into industrial CT
  • Programmable parameters make the system easy to use
  • Exceptional use of space with small footprint
  • Batch mode testing increases throughput
  • Available with LDA or flat-panel detector

Do you need to inspect larger parts with high density? Are you looking for an efficient entry point into industrial CT? Experience the easy-to-use CT Compact, featuring time saving functions like batch mode and single-slice CT.

Automatic image enhancement via dedicated software algorithms, significantly contributes to the premium image quality of the CT Compact. The system is ideally suited for imaging components in automotive and aerospace foundries such as:

  • Heavy metal castings
  • Aluminum and steel components
  • Cylinder heads, engine blocks and transmission housings
  • Dense historical art and archeological objects
  • Large geological samples

In one test run you can create CT projections, each with different parameters, for different areas of the test parts. This way you speed up the testing process while maintaining image quality. Our multiple parts testing feature conveniently covers more than one item per test run.

YXLON has developed a linear detector array (LDA) that further guarantees scatter-free, homogenous image quality and provides unprecedented signal-to-noise ratio.

CT Compact generates high energy to effectively penetrate iron components up to 65 mm (2.6’’) thick and aluminum parts up to 250 mm (9.9’’).

Software features like automated center determination and imaging correction algorithms eliminate the need for time-consuming manual interaction.

Sample Diameter600 x 750 [mm]
Maximum Sample Weight50 [kg]
X-ray TubeY.TU450-D11
Minimum CT Scan Time< 15 [s] per slice
Voxel Sizedown to 70 [µm]
Inspection ModeFan-beam CT
Manipulation2/3 axes with variable magnification option
Detector typeY.LDA Line Detector / Y.Panel 1620/1621
