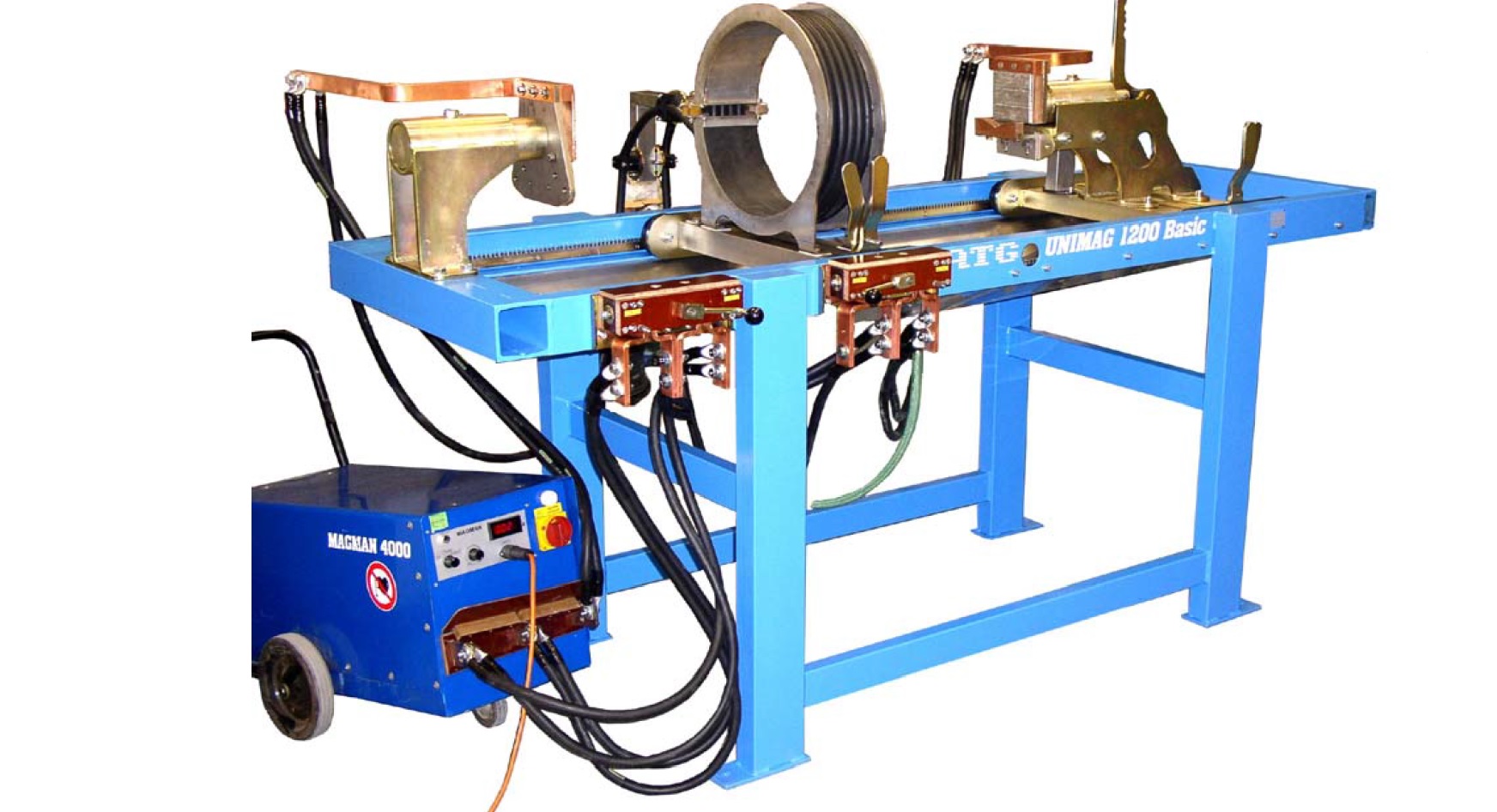

UNIMAG BASIC



Selected parameters:

  • Clamping length from 1200 up to 2400 mm
  • Loading limit on prisms 250 kg, type with supports 400 kg
  • Manual shift of carriage to limiting of clamping length, self-locking lever brake
  • Manual clamping by drift of right clamping head
  • Movable coil 5 turns, diameters 305 (12“), 406 (16“) or 510 mm (20“), detent in position
  • Lever switches for coil/current and (depends on type of generator) switching AC/DC
  • Current magnetization max. FWDC 8000 A

Option:

  • Current generators MAGMAN H or MAGMAN F type
  • Stainless tank for 15 l or 40 l of suspension, pump 0,1 kVA, hand hose
  • Rollers for manual rotation
  • Darkened cabin, axial fan for ventilation, auxiliary lighting
  • UV lamp on movable holder
  • Flat coils Æ 400, Æ 500 or Æ 600 mm for discs testing
  • Gauges, measurement, powders, oils, concentrates of water magnetic ink



Photos
