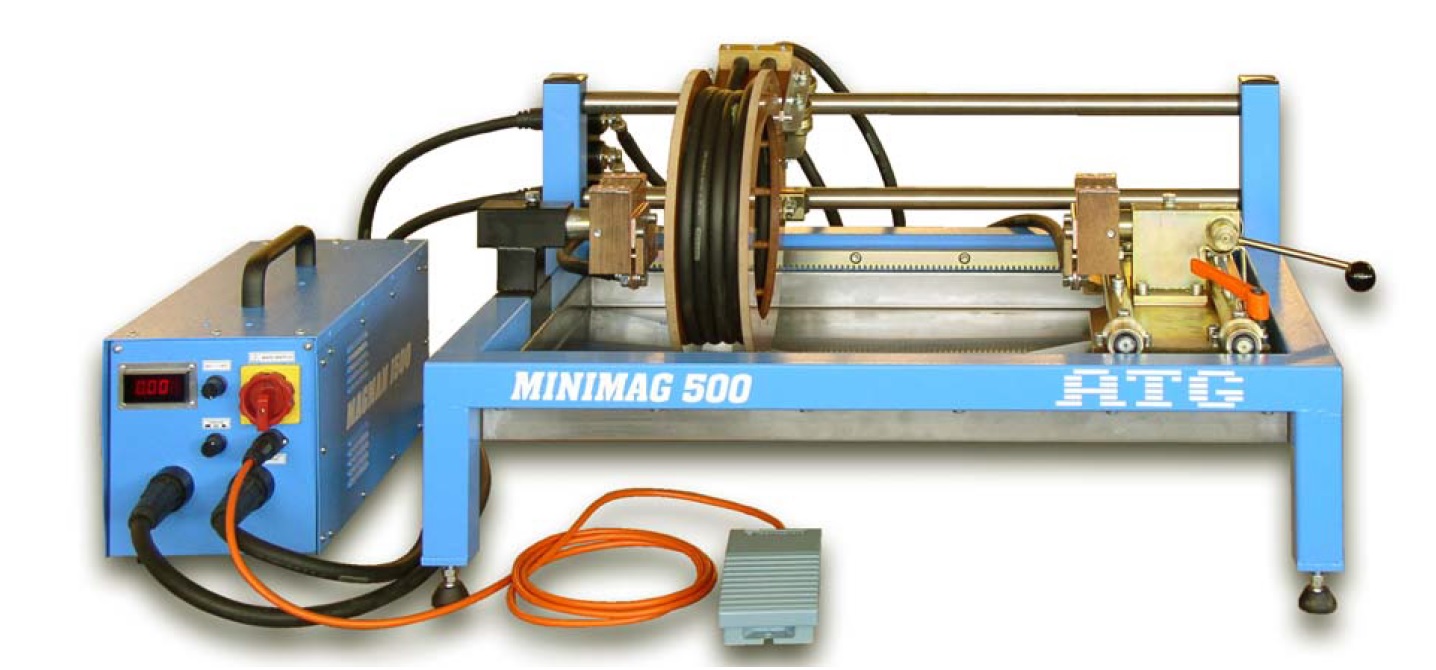

MINIMAG



Horizontal magnetic particle benches MINIMAG series are intended for non-destructive testing of ferromagnetic steels and irons by magnetic particle method. The equipment is designed for connection of current generators MAGMAN series for AC, HW and single phase FWDC currents.

Basic description:

  • Magnetization by direct flow through part or by auxiliary conductor
  • Longitudinally (lengthwise) magnetization by movable coil
  • 4 turns of 95 mm2 cable or 3 turns 150 mm2, diameter 250 mm
  • Clamping length from 50 up to 520 mm or (option) 1000 mm, maximum load 50 kg (25 kg on one brace)
  • CuSn wire-netting exchangeable contacts for circulary magnetization
  • Manually switching between circulary and coil magnetization by switch-over of connector
  • Basic dimensions 1000 x 700 x 550 mm, weight 85 kg or 98 kg for stationary version
  • Minimag is available in both stationary and tabletop versions

Option, accessories:

  • AC, and/or HW + FWDC current generators MAGMAN from 1500peak A up to 4000 Apeak
  • Lever-switch for switching between current and coil magnetization
  • UV lamps, UV meters, Luxmeters, Gauss-Tesla meters, gauges, ASTM centrifuge tube
  • SPRINKMAN – the stainless tanks on 15 litres or 40 litres of suspension, hand hose, pump 90 VA, feeding 3+PE 400 V – 50 Hz
  • Powders, concentrates and suspensions CHEMETALL / ARDROX / FRAMAGNETO
